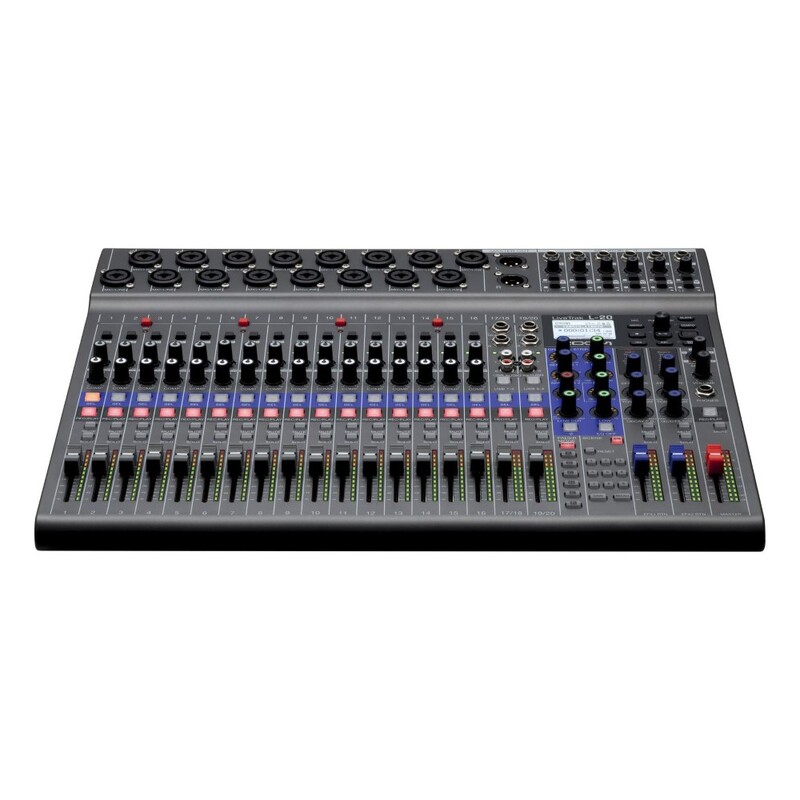

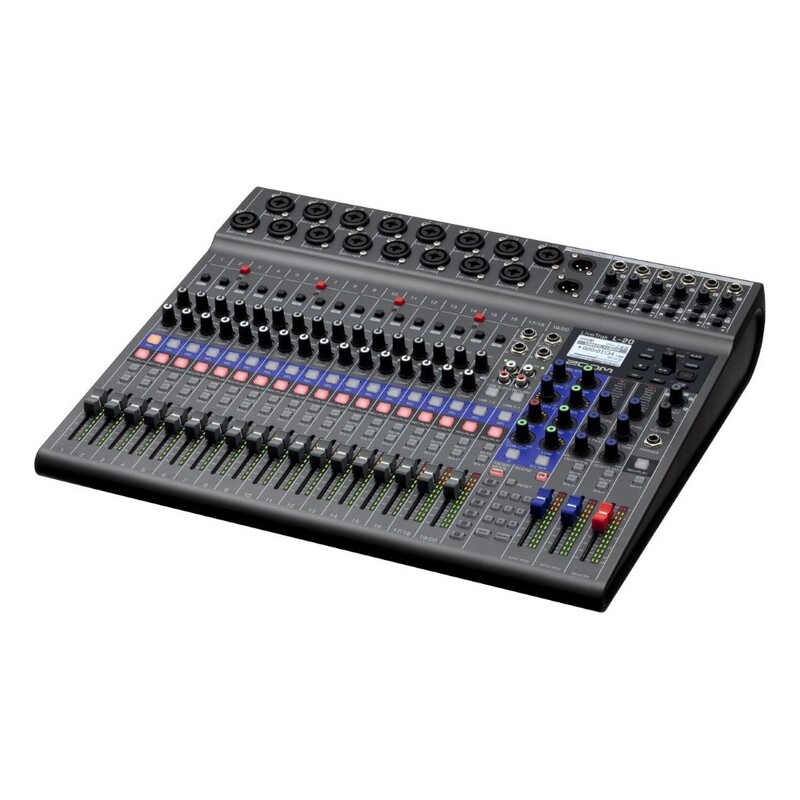

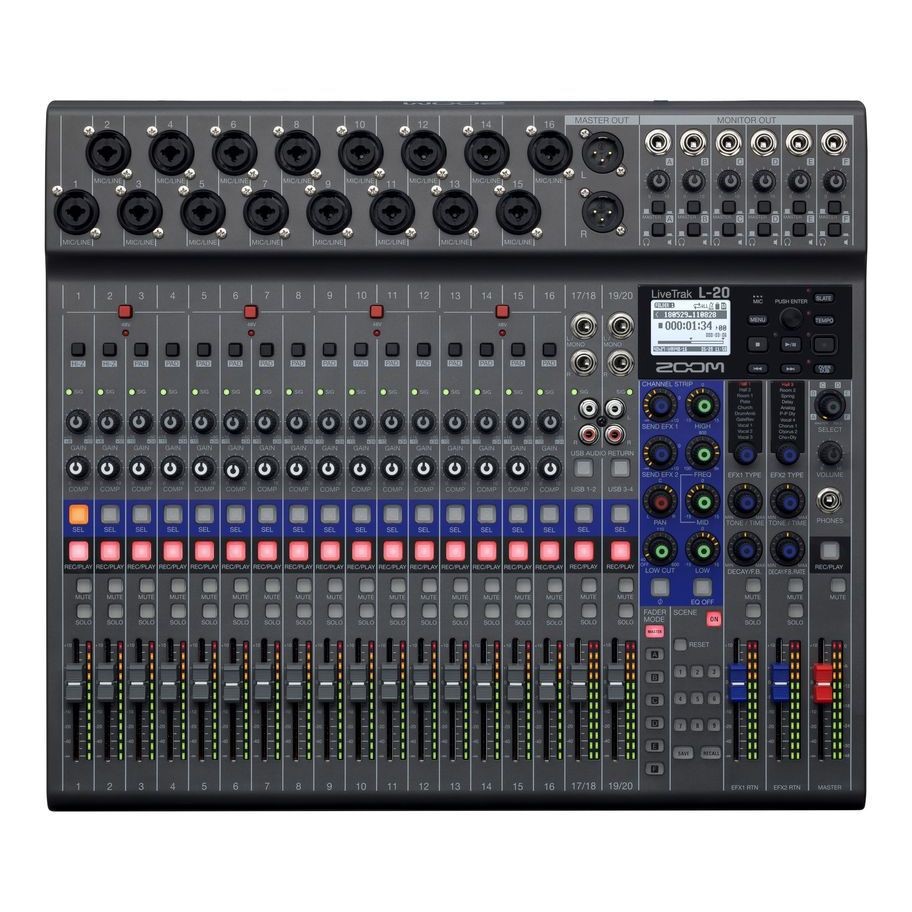

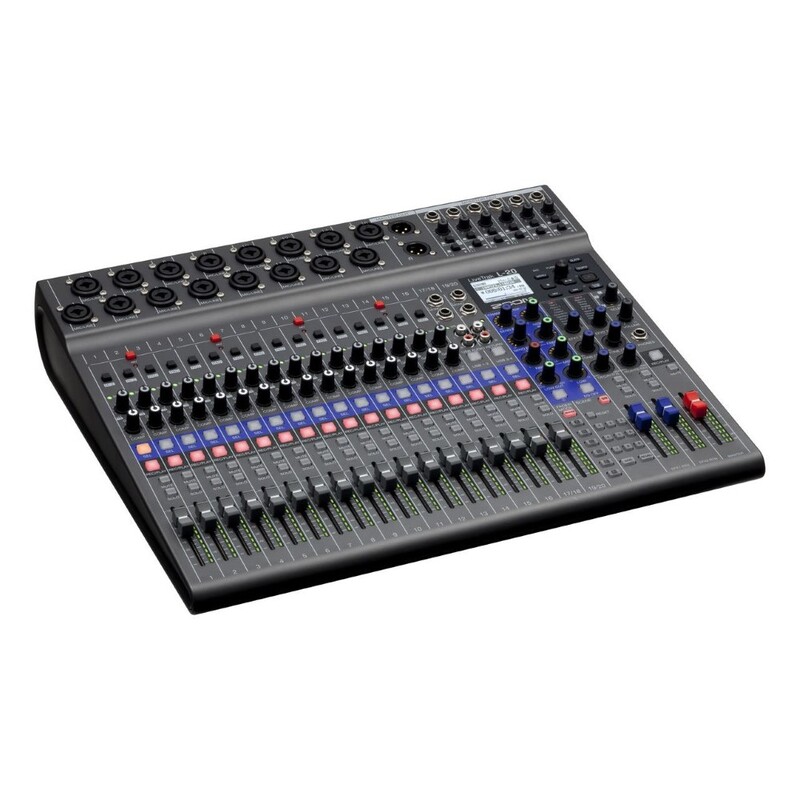

Zoom LiveTrak L-20 Digital Mixer - 20 Channels
أداة العثور على المتجر
The Zoom LiveTrak L-20 makes capturing a rehearsal, producing a quick demo, or creating a great-sounding concert recording easy. Not only can you record up to 22 individual channels, but you can also create custom headphone mixes for up to six band members and craft a polished live mix complete with studio-quality effects. You can complete your entire project on the L-20 or transfer all 20 discrete tracks to your DAW for editing and mixing. The LiveTrak L-20 also functions admirably as a 22-in/4-out USB audio interface for your Mac, PC, or iOS device.
20-channel digital mixer (16 mono/2 stereo)
22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning to USB Camera Adapter is required for iOS)
22-track 24-bit/96kHz recording directly to an SD card
Record up to 48kHz to a computer and an SD card simultaneously
Create customizable, savable headphone mixes for up to 6 band members
Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing
16 combo jacks accommodate both XLR and 1/4" connectors
16 great-sounding mic preamps with phantom power and +60dB of gain
Channels 1 and 2 offer hi-Z inputs for your electric guitar or bass
Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices
Each channel features a 3-band mid-parametric EQ and 20 built-in effects
Channels 1–16 include a dedicated compressor for controlling dynamics
Channels 3–16 have a -26dB Pad for capturing loud sources
Clear 12-segment LED metering for keeping an eye on your levels
Save up to 9 scenes and recall your custom settings automatically
Record automatically when the Master fader detects a certain dB level
Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
Built-in slate mic for recording comments or talkback
Onboard metronome for keeping the band in sync
Type: Digital Mixer with USB Interface
Channels: 20
Inputs - Mic Preamps: 16 x XLR-1/4" combo (mic/line)
Phantom Power: Yes
Inputs - Line: 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo
Inputs - Other: 2 x XLR-1/4" combo (Hi-Z)
Outputs - Main: 2 x XLR (master)
Outputs - Other: 6 x 1/4" (monitor)
Busses/Groups: 2 x FX Buses
Talkback: Built-in Slate Mic
Headphones: 1 x 1/4" TRS

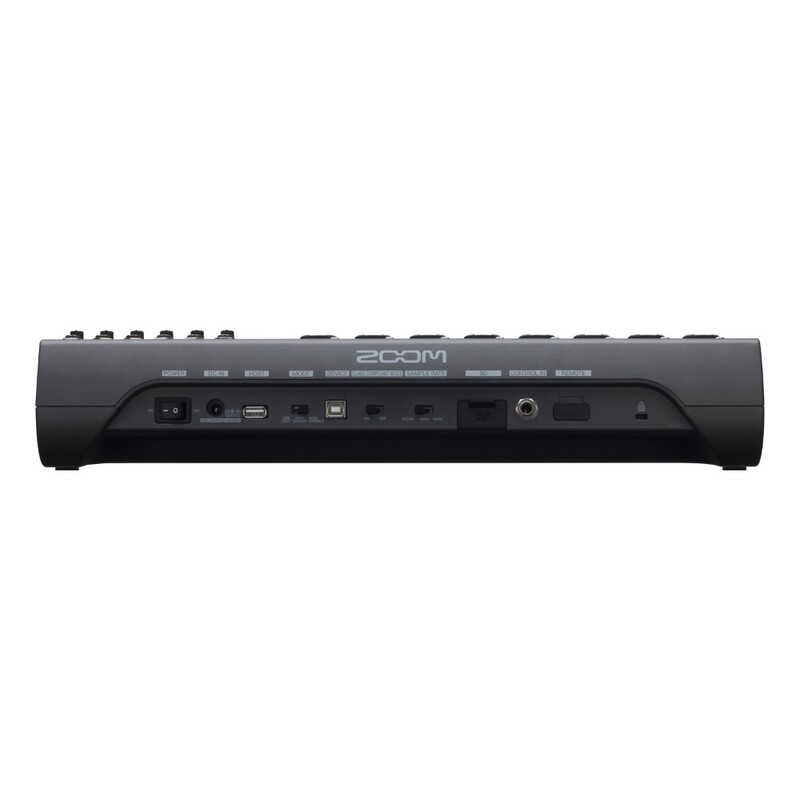

USB: 1 x Type A, 1 x Type B
Computer Connectivity: USB (22 x 4)
Remote: 1 x 1/4" (footswitch control), 1 x Remote Port (BTA-1 adapter)
Faders: 18 x channel faders, 2 efx faders, 1 x master
A/D Resolution: Up to 24-bit/96kHz
EQ Bands: 3-band Mid-parametric EQ
Effects: 20 effect variations ; Reverb, Delay, Chorus
Signal Processing: Compression (16 channels)
Features: 22 recording tracks, 20 playback tracks, 9 scene recall settings
Transport Controls: Yes
Screen: LCD screen
Storage: SDHC/SDXC Card Slot
Software: Remote Mixer App (iPad, BTA-1 bluetooth adapter required)
Rackmountable: Yes (RKL-12 kit sold separately)
Power Source: 12V DC 2A power supply (included)
Height: 3.25"
Depth: 15.3"
Width: 17.5"
Weight: 8.1 lbs.
