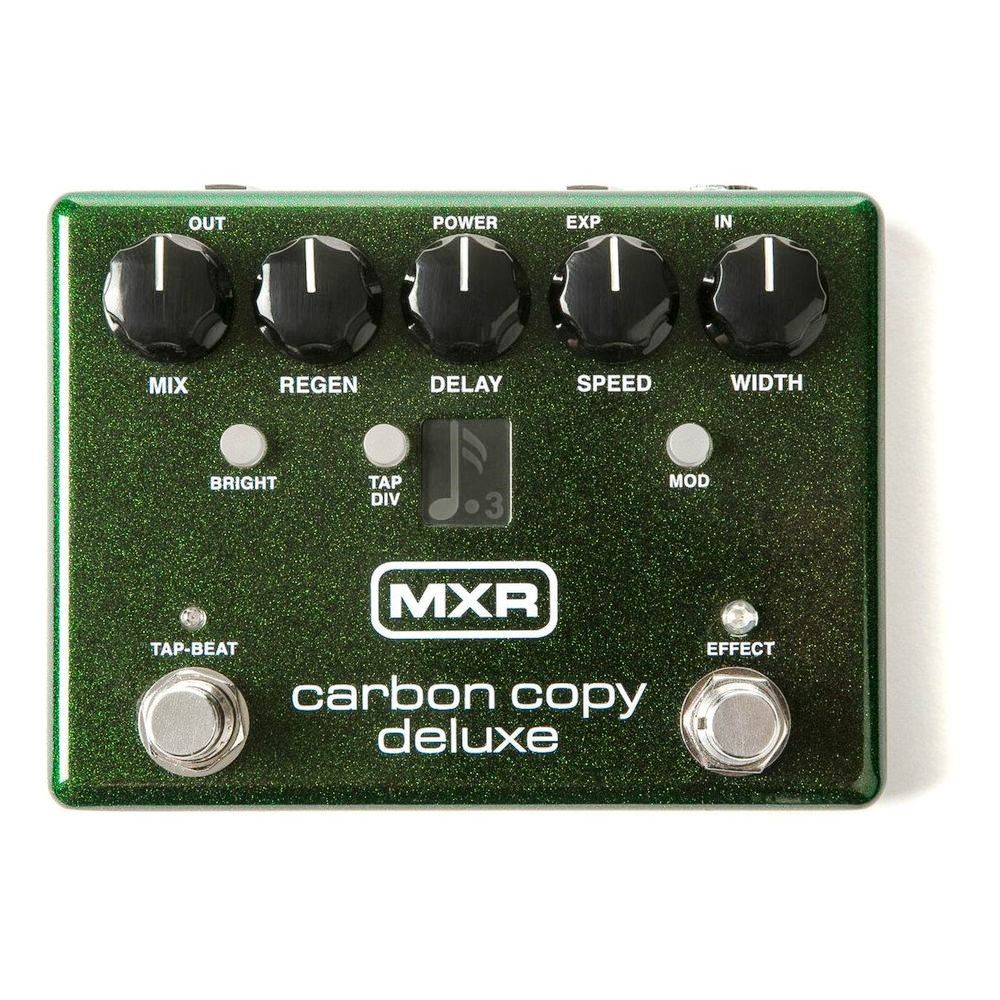

Jim Dunlop MXR Carbon Copy Deluxe Analog

The Carbon Copy Deluxe Analog Delay features extended delay time with tap tempo functionality, optional modulation, a switch to toggle between the warm sound of the original pedal and vibrant sound of the Bright version, and much more.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

Input Impedance 1MΩ
Output Impedance 1 kΩ
Maximum Output Level +8dBV
Noise Floor* -96 dBV
Delay Time 40ms to 1200ms
Noise Reduction 2:1 ratio
Modulation Speed 0.1 Hz to 10 Hz
Tap Divisions Dotted 8th, 8th, Triplet, 16th
Bright** 1.5 kHz, +4.5 dB
200 Hz, -3 dB
Bypass True Hardwire
Current Draw 22 mA***
44 mA****
Power Supply DC 9 volts
