Ik Multimedia IRIG-HD-X Guitar Audio Interface

Sound Your Best Anywhere

A great interface is the one that’s always there for you. iRig HD X is the new flagship of the iRig guitar interface family, bringing breathtaking sound quality and even more advanced features to guitarists everywhere. Compact enough to store in your gig bag, iRig HD X lets you connect anytime with inspiring new ways to play and sound amazing.

Practice with popular learning apps or favorite songs. Browse and discover thousands of new tones on ToneNET. Record ideas wherever inspiration strikes. Stream videos of you jamming to backing tracks. Warm up before gigs with all your favorite tones. No matter where you are on your musical journey, with iRig HD X the possibilities are endless.

Your New Mobile Dream Rig

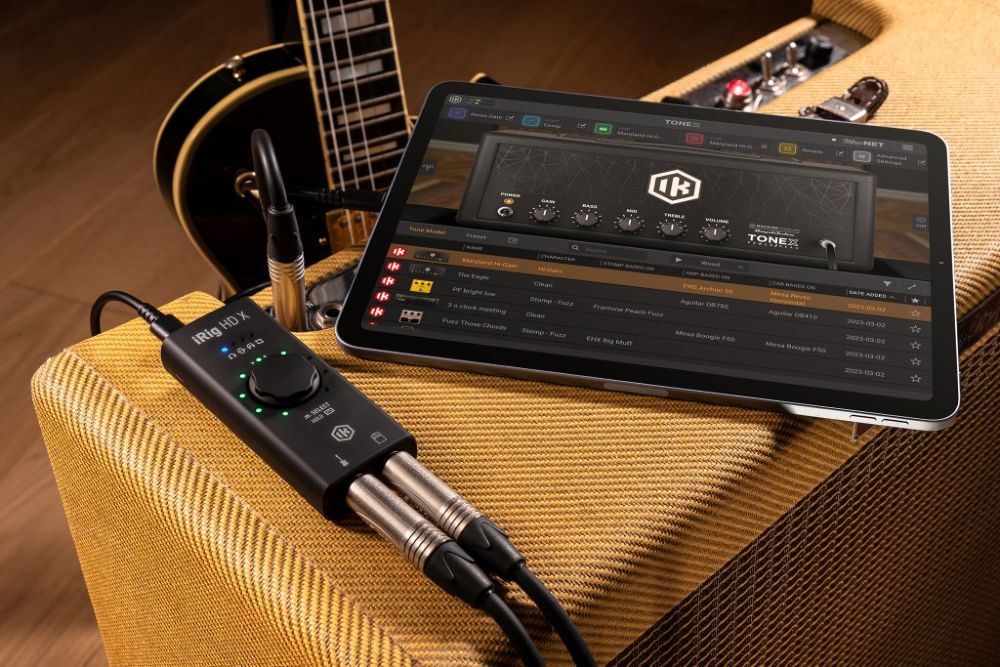

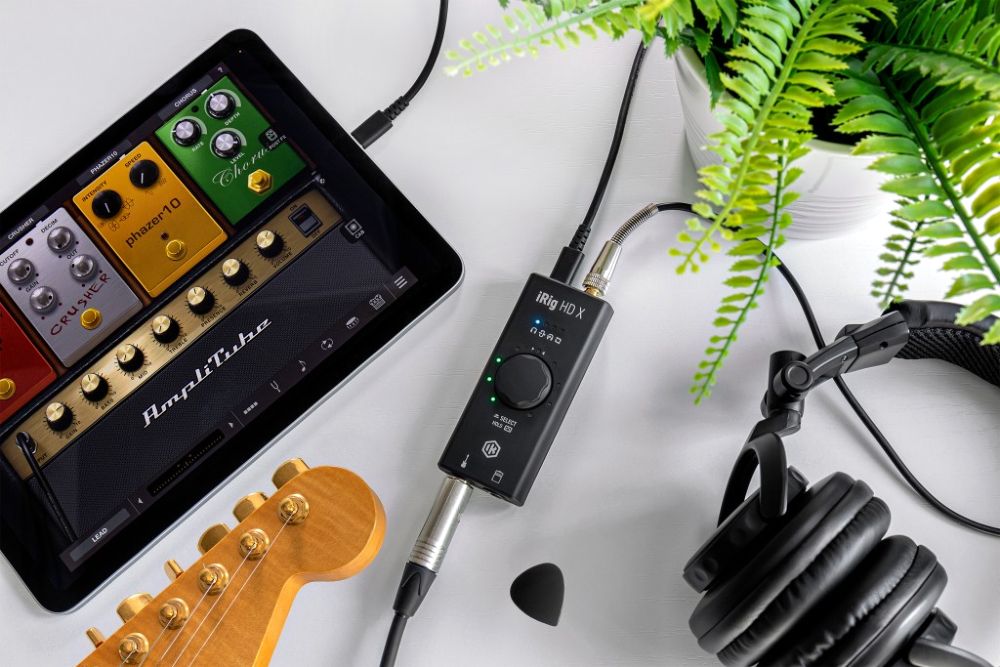

iRig HD X + TONEX and AmpliTube for iPhone and iPad gives you an incredibly versatile mobile rig with 2 powerful ways to find your sound: TONEX using IK’s AI Machine Modeling technology, and AmpliTube offering the ultimate tone processing and recording studio. Play, practice and record on your mobile device with the most authentic and hyper-realistic gear models ever made.

Ultra-Compact, High-Quality Audio

iRig HD X features a whisper quiet and transparent instrument preamp with wide frequency response and dynamic range that ensures every nuance of your playing is accurately translated while preserving the true tone of your instrument. The Headphone Out and Amp Out are equally high end offering exceptional sound quality in a device this portable.

Features:

• Compact, 24-bit/96 kHz audio interface for guitar or bass
• Connects directly to iPhone or iPad and Mac/PC
• Audiophile-grade 1/8 inch stereo out for headphones and monitors
• 1/4 inch Amp out connects to amps, pedalboards or FRFR speakers
• Ideal for guitar and bass players of all levels
• For practice, finding tones, jamming, recording and streaming

Headphone Volume

When selected, the knob controls the headphone volume with LED metering.

Amp Output Fx/Thru

When selected, the knob switches between a direct or processed signal to your amp.

Direct Monitoring On/Off

When selected, the knob switches between a direct or processed signal to the headphone out.

LOOPBACK+

When selected, the knob turns on/off Loopback+, a virtual effects loop for sending your processed guitar tone to other apps.

Specifications:

• AD and DA resolution: 24-bit
• Sampling rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
• Host connection: USB Type-C socket

Instrument Input

• Input impedance:1 MOhms
• Maximum input level: +9 dBu
• Frequency response: From 20 Hz to 20 kHz within 3 dB (96 kHz sample rate)
• Dynamic range: 115 dB(A)

Amp Output

• Configuration: Unbalanced
• Output impedance: 3.3 kOhms
• Output level: 0 dBFS corresponds to -2 dBu
• Frequency response: From 15 Hz to 40 kHz within 1 dB (96 kHz sample rate)
• Dynamic range: 97 dB(A)

Headphone Output

• Output impedance: 22 Ohms
• Maximum output level: approx. 8 mW into 32 Ohms load
• Frequency response: From 15 Hz to 40 kHz within 1 dB (96 kHz sample rate)
• Dynamic range: 95 dB(A)

Includes:

iRig HD X interface

USB-C to USB-C cable (60 cm/23.62-Inch)

USB-C to Lightning cable (60 cm/23.62-Inch)

Dimensions: 3.9 x 1.65 x 0.98 Inches

Weight: 54 g/1.9 oz.
