Brand: ROLAND
MODEL: PM-100

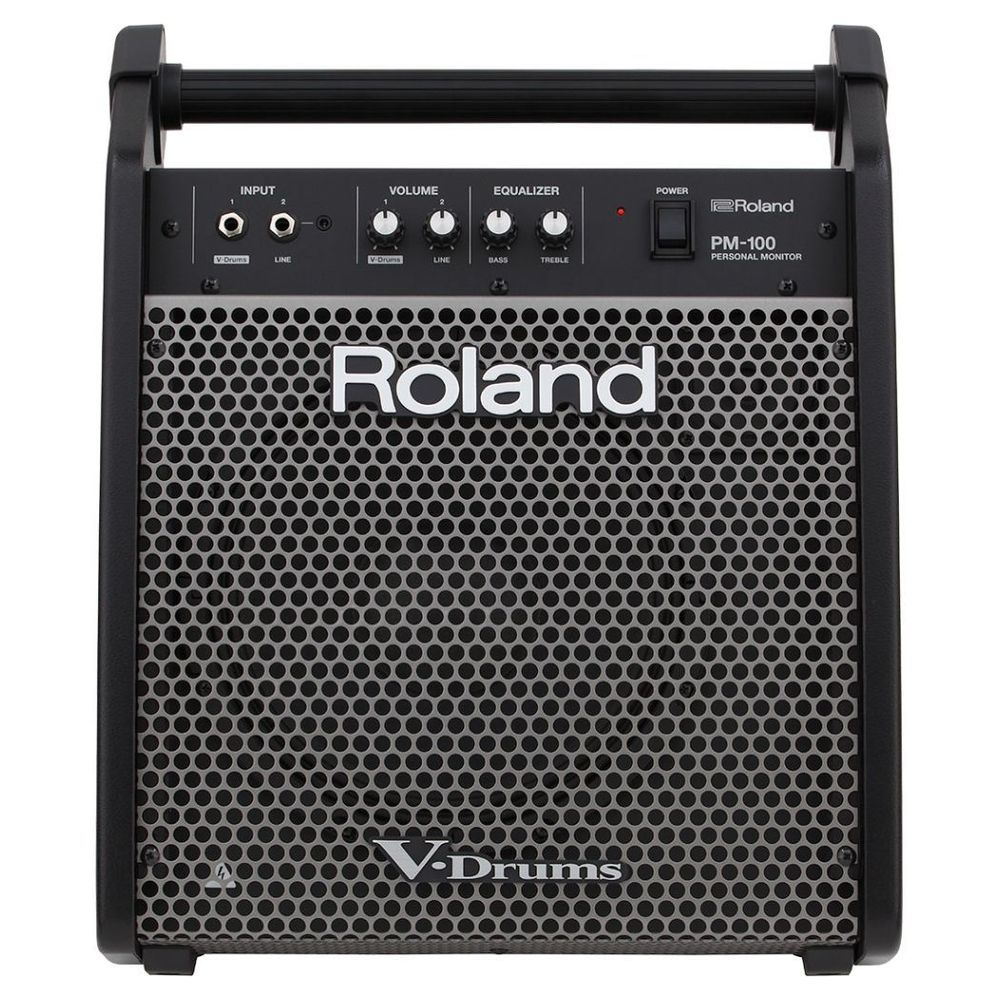

Roland 80W Personal Monitor for V-Drums PM-100
Store finder
High-Resolution Sound Monitoring, Fine-Tuned for Rolands V-Drums
Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Rolands V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, youre able to connect music players and other devices for practice and enjoyment while playing at home.
Pro-Level Sound for Playing V-Drums

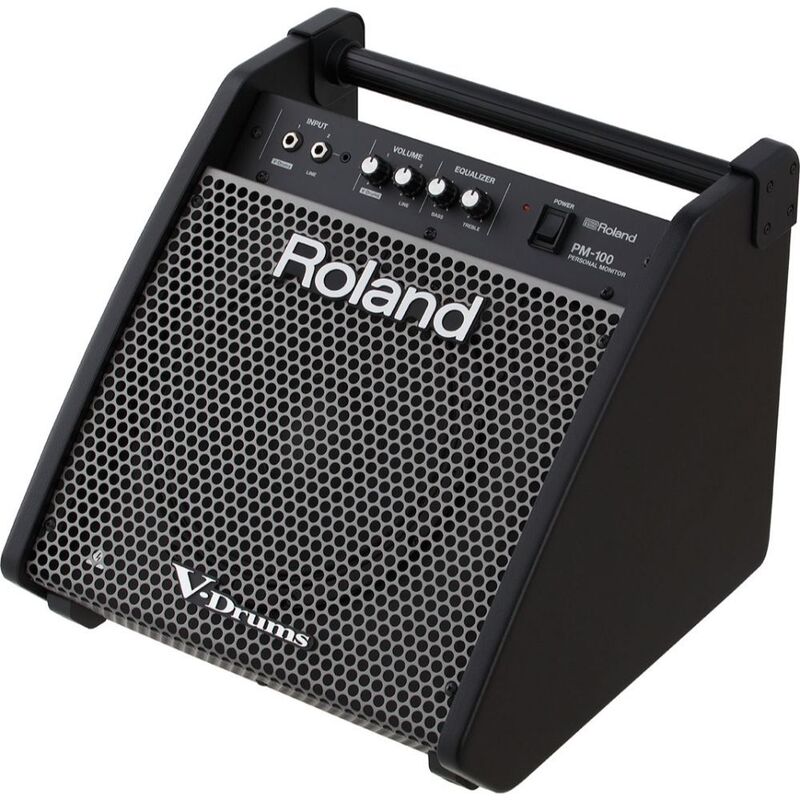

The PM-100 is the perfect complement to any V-Drums set. Its compact size is ideal for playing at home, and the powerful custom speaker system delivers rich, full-range sound with inspiring punch and presence. The front face is angled for optimal sound monitoring while seated at the V-Drums, and a full-width bar handle on top offers a convenient way to carry the monitor and adjust its floor position.
Versatile Onboard Mixing
With its integrated mixer, the PM-100 allows you to monitor backing music and external devices along with your kit. Theres a dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players. Independent volume controls are provided for the V-Drums and line input sections, and theres also a two-band equalizer for shaping the overall sound.
Specifications:
Rated Power Output: 80 W
Nominal Input Level:
V-Drums INPUT: -6 dBu (10 k ohms)
LINE INPUT: -6 dBu (10 k ohms)
Speaker: 25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1
Controls:
POWER switch
V-Drums VOLUME knob
LINE INPUT VOLUME knob
BASS knob
TREBLE knob
Indicators: POWER
Connectors:
V-Drums INPUT jack: Stereo 1/4-inch phone type
LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
AC IN jack
Power Consumption: 36 W
Accessories:
Owner’s manual
Power cord
Width: 388 mm (15-5/16 inches)
Depth: 407 mm (16-1/16 inches)
Height: 354 mm (13-15/16 inches)
Weight: 13.5 kg (29 lbs 13 oz)
