Brand: IBANEZ
MODEL: AAD50CE-LG

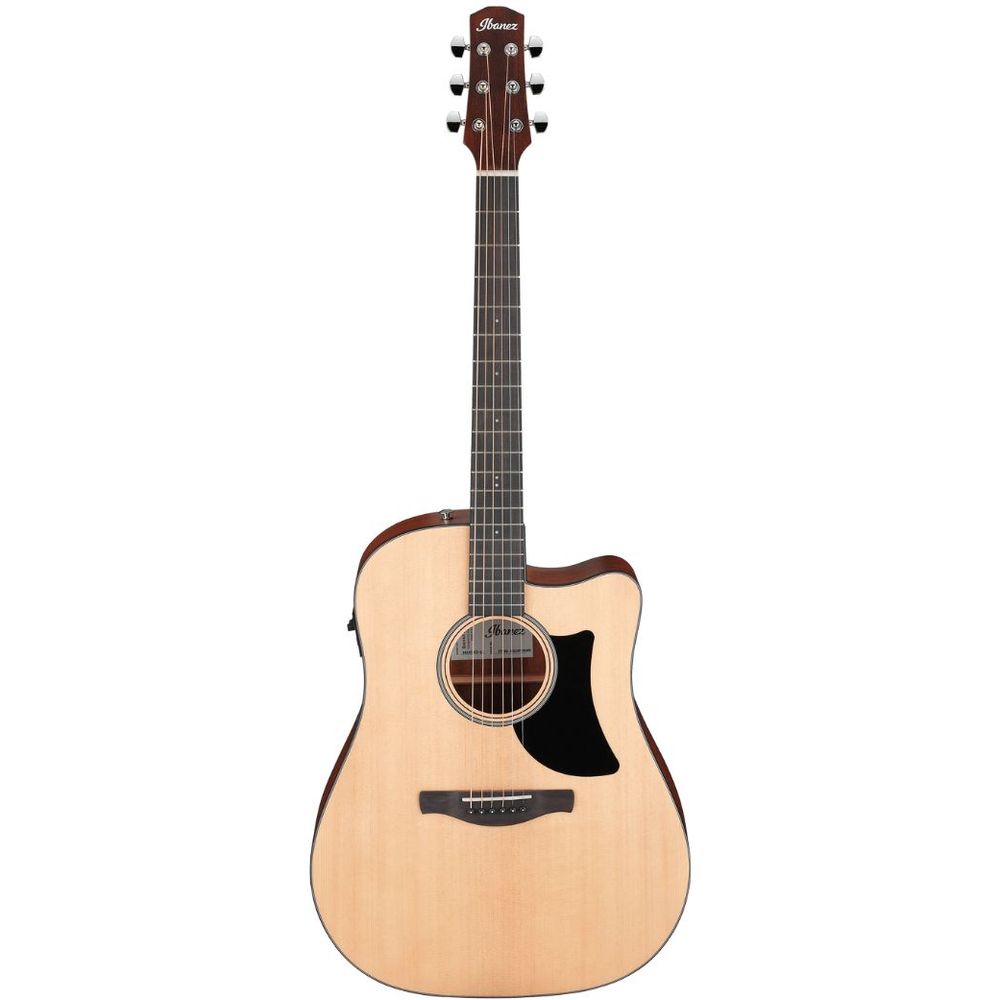

Ibanez AAD50CE-LG Advanced Acoustic Guitar - Low Gloss
Store finder
The Ibanez AAD50CE-LG Advanced Acoustic Guitar in Low Gloss is a standout instrument designed for both rich sound and comfortable playability. Perfect for musicians looking for a reliable and versatile acoustic-electric guitar that delivers both in studio and live settings.
SPECS
body shape
Grand Dreadnought with Advanced Access Cutaway body
bracing
X-M Bracing
top
Solid Sitka Spruce top
back & sides
Sapele back & Sapele sides
neck
AADOkoume neck
fretboard
Purpleheart fretboard
bridge
Purpleheart bridge
inlay
White dot inlay
soundhole rosette
Black & White multi rosette

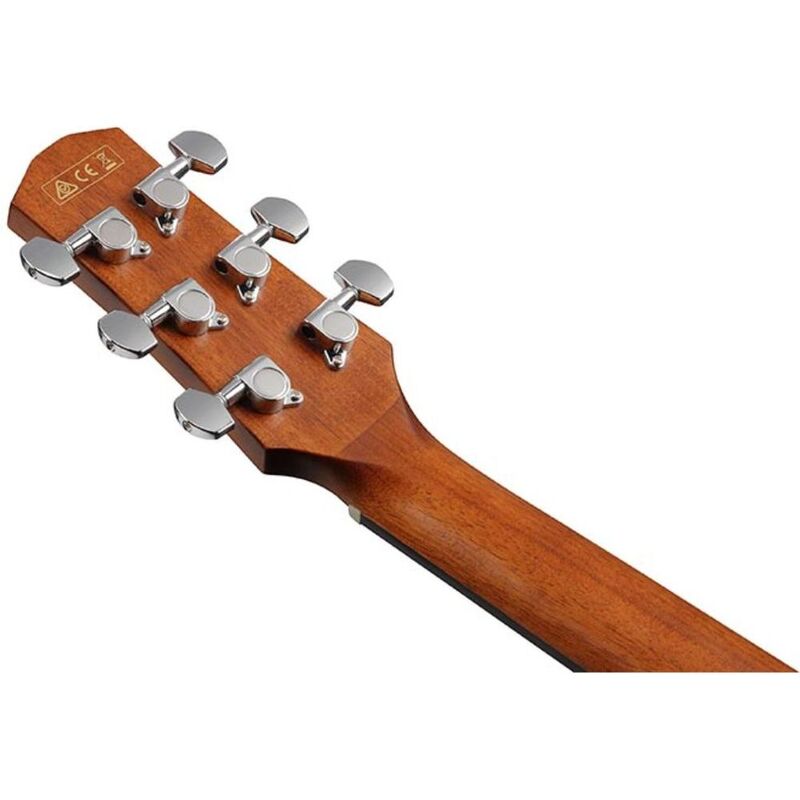

tuning machine
Chrome Die-cast tuners (18:1 gear ratio)
number of frets
20
bridge pins
Ibanez Advantage™
strings
D’Addario® EXP16
string gauge
.012/.016/.024/.032/.042/.053
string space
11mm
factory tuning
1E,2B,3G,4D,5A,6E
pickup
Ibanez T-bar Undersaddle
preamp
Ibanez AEQ-TP2 preamp w/Onboard tuner
output jack
Balanced XLR & 1/4″ outputs
NECK DIMENSIONS
Scale :
650mm/25.6″
a : Width
43mm at NUT
b : Width
55mm at 14F
c : Thickness
21mm at 1F
d : Thickness
22mm at 7F
Radius :
400mmR
DESCRIPTION
BODY DIMENSIONS
a : Length
20 3/8“
b : Width
16 1/4“
c : Max Depth
5 “
PREAMP

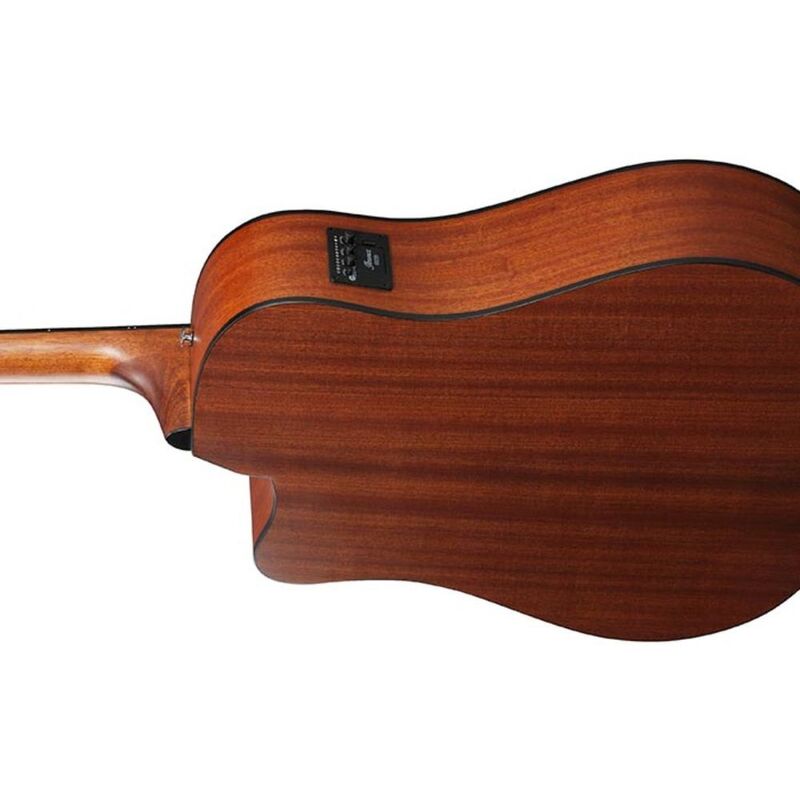

The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
